LPG
LPG

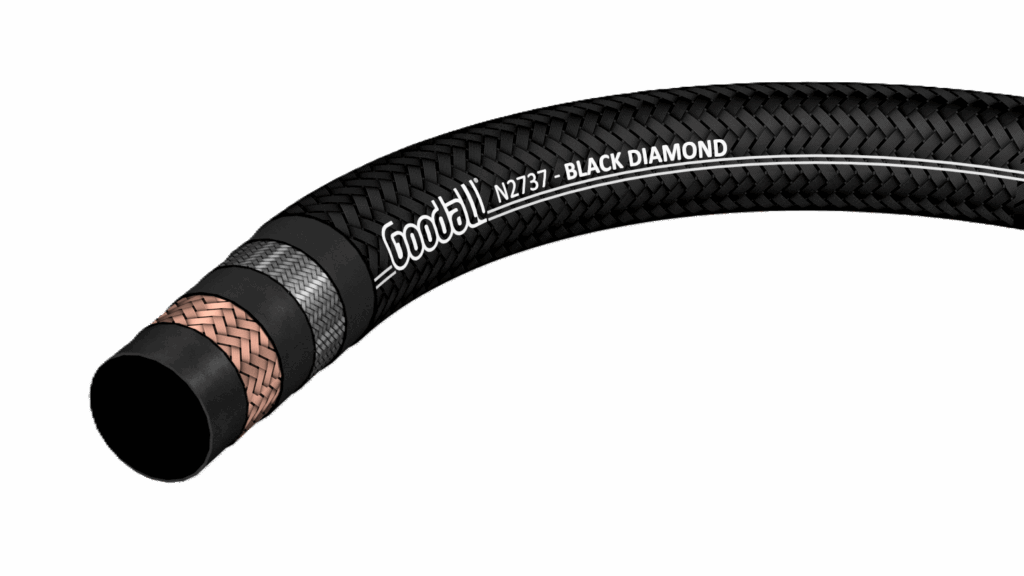

BLACK DIAMOND
N2737
I.D.
13/32” – 1 13/16″
W.P.
350 psi
Temp.
-40°F to +200°F
Application
- Hard-wearing transfer hose for LPG
- Compatible with propane, butane, and natural gas when assembled in compliance with local, regional, and national codes and standards. For use only in well-ventilated areas
- Superior strength, durability and kink resistance created by the combination of high-tensile polycotton and stainless steel braids
Download Technical Data Sheet

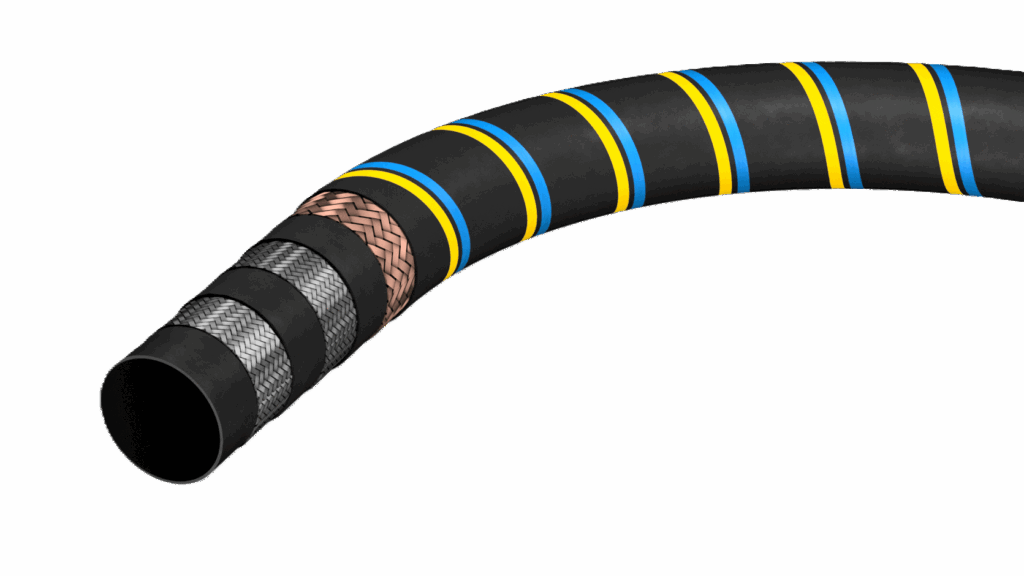

CSA TYPE 1 LPG HOSE
N2567
I.D.
3/4″ – 2″
W.P.
350 psi
Temp.
-40°F to 180°F
Application
- High Grade Black LPG Resistant Nitrile
- High Tensile Stainless Steel & Textile Braid
- Abrasion, W eather & Ozone Resistant Neoprene
Download Technical Data Sheet

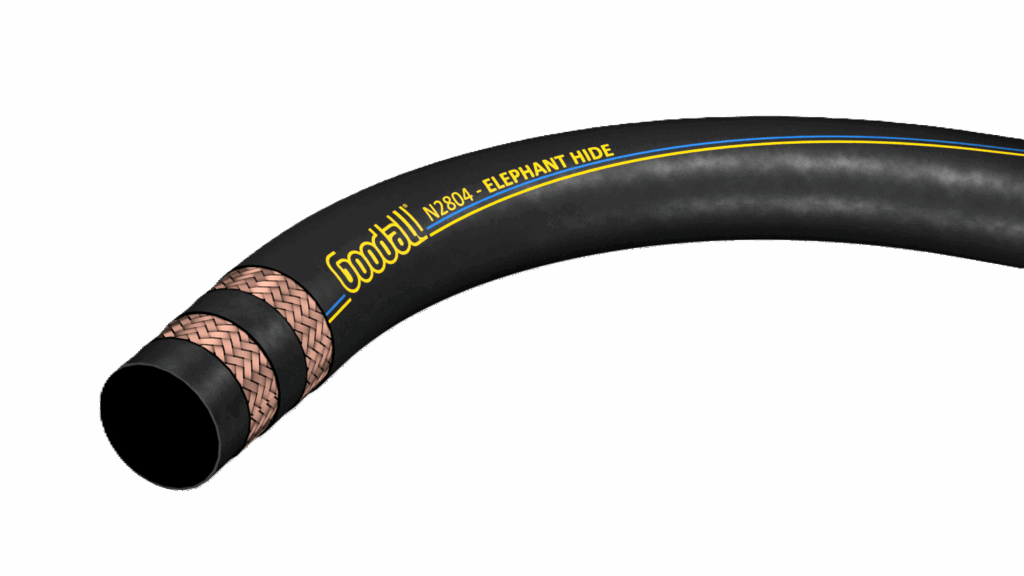

ELEPHANT HIDE
N2804
I.D.
1″ – 2″
W.P.
350 psi
Temp.
-40°F to +180°F
Application
- Premium LPG transfer hose for demanding conditions
- Exceptionally high abrasion resistant cover
- Ideal for tank truck service and trailer to storage use
- Approved to UL 21 specifications
Download Technical Data Sheet

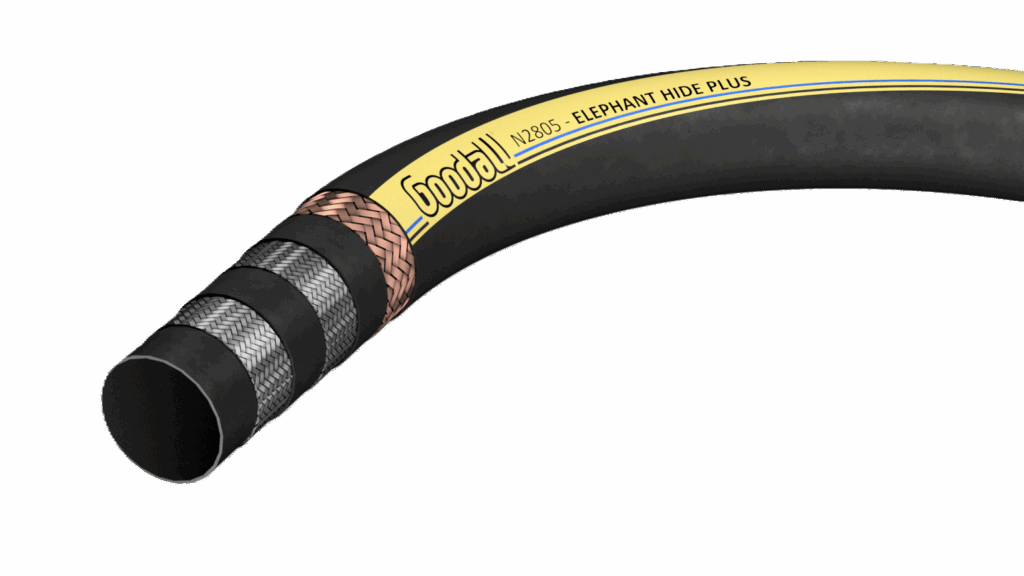

ELEPHANT HIDE PLUS
N2805
I.D.
1″ – 3″
W.P.
350 psi
Temp.
-40°F to +180°F
Application
- Superior LPG transfer hose for demanding conditions
- Reinforced with corrosion resistant stainless steel braids
- Exceptional high abrasion resistant cover
- Ideal for tank truck service and trailer to storage use
- Approved to UL 21 specifications
Download Technical Data Sheet

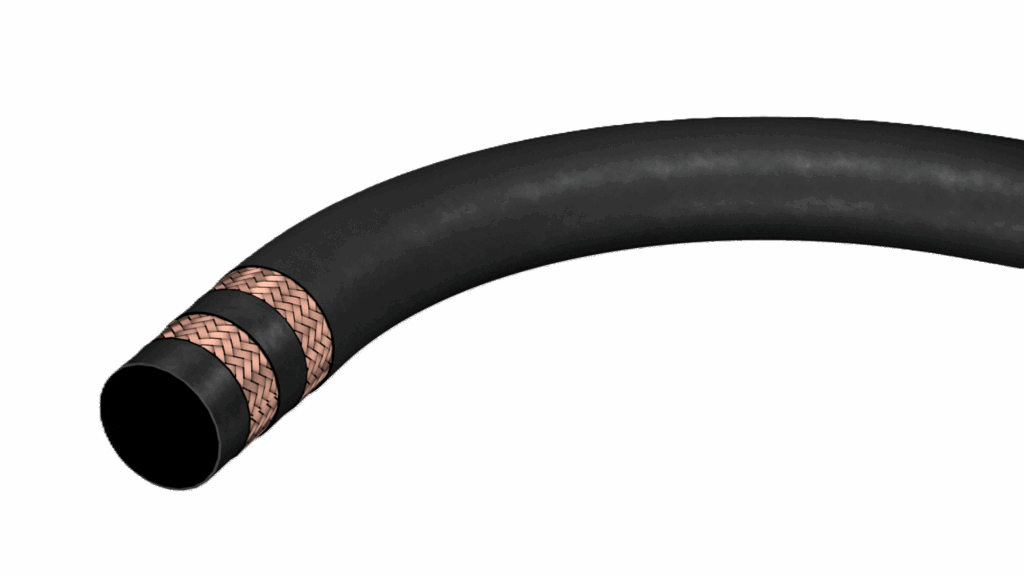

Impact LPG PT
N372A-2
I.D.
1 1/4″-2″
W.P.
350 psi
Temp.
-40°F to +180°F
Application
- ISO 9001 Quality and ISO 14001 Environmental registered manufacturer. Highest Quality standards that ensure a safe, consistent and dependable product.
- Manufactured in Canada, following industry standards such as NAHAD and RMA.
- Designed to meet Underwriters Laboratories (UL) specification UL-21
- Frequency testing performed to insure compliance to UL specifications
- Braided reinforcement offers better kink resistance and stability under pressure
Download Technical Data Sheet
